Inline Contacting Cell
Inline Testing
In modern electronics production, efficient inline testing, flash and inspection systems are essential to ensure the quality, durability and safety of components and circuits. As an experienced machine manufacturer with an eye for the big picture, the ASYS Group offers the ATHOS inline board testing system for this purpose. The modular design allows flexible adaptation of the solution. All test principles (such as ICT, Flash, FKT, ...) that require contacting by means of a needle bed can be integrated.
Designed for flexible test requirements: The system has a 1-segment conveyor belt for the PCBs. A parallel stopper with sensors stops the product accurately and positions it precisely. During the contacting stroke, the belt is pressed down while pins center and contact the PCB in the adapter. The mechanics are designed in such a way that no stress can be exerted on the PCB by the machine. Testing or flashing can be carried out on one side with a support plate or on both sides.
ATHOS 800 - Compact Testing Technology for Highest Quality Standards
- Maximum plate length: 400 mm
- Contacting repeat accuracy 15 µm @ 3 sigma via servo motor
- Handling time down to < 3 s
- Up to 15,000 N contact force
- Connectivity: Integration of adapters and test equipment according to customer requirements
- Single & dual stage contacting
- Up to 35 U 19” fully integrated mounting rack for test equipment
- High signal quality thanks to static cables and shortest cable lengths
- Adapter sensor to ensure the PCB position
- Adapter coding
- Simplex User Interface: clear user guidance and user-friendliness
- Time savings through automatic product changeover of complete test island
- Parallelization of several test systems
- Automatic line product change via recognition of adapter ID
- Adapter transport system for support when changing adapters
- Seamless data exchange through standardized interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- TCP/IP interface to test equipment
- Transfer and processing of G/S information
- 100% traceability for PCBs
- Easy replacement of adapters and test equipment
- Automatic cycle time adjustment
- Energy saving mode
- Prevention of adapter crashes through adapter sensor and adapter ID
- Modular cell structure for optional reusability

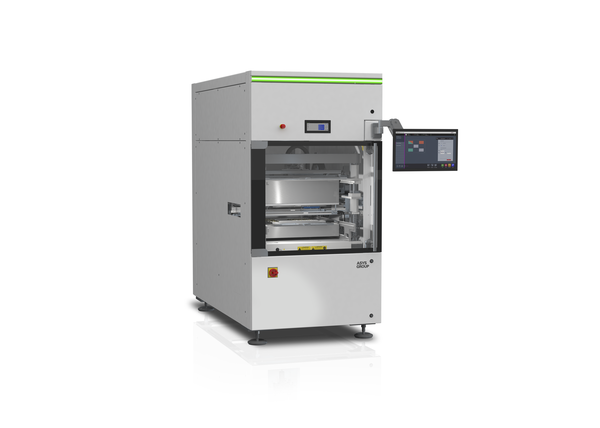

ATHOS 1000 - Spacious Room for In-circuit and Functional Tests
- Maximum plate length: 400 mm
- Contacting repeat accuracy 15 µm @ 6 sigma via servo motor
- Handling time down to < 3 s
- Up to 15,000 N contact force
- Connectivity: Integration of adapters and test equipment according to customer requirements
- Single & dual stage contacting
- Up to 35 U 19” fully integrated mounting rack for test equipment
- High signal quality thanks to static cables and shortest cable lengths
- Adapter sensor to ensure the PCB position
- Adapter coding
- Simplex User Interface: clear user guidance and user-friendliness
- Time savings through automatic product changeover of complete test island
- Parallelization of several test systems
- Automatic line product change via recognition of adapter ID
- Adapter transport system for support when changing adapters
- Seamless data exchange through standardized interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- TCP/IP interface to test equipment
- Transfer and processing of G/S information
- 100% traceability for PCBs
- Easy replacement of adapters and test equipment
- Automatic cycle time adjustment
- Energy saving mode
- Prevention of adapter crashes through adapter sensor and adapter ID
- Modular cell structure for reusability
ATHOS TestingIntegration of adapters and test equipment from all manufacturers.
Productivity Increase and Process OptimizationPossible through parallel test systems.
Fully Integrated Test EquipmentThanks to large recording rack.
ATHOS Inline Inspection: Increased Efficiency, Higher Productivity
Our fully automated inline board testing system integrates seamlessly into your production line or can be operated independently. It detects errors immediately, prevents unnecessary reworking and optimizes quality control in real time. Thanks to fully integrated traceability, faulty parts can be reworked in a targeted manner - for more space savings, greater efficiency and the best product quality.
