Flip and Turn
Fast & Gentle Lifting Movement

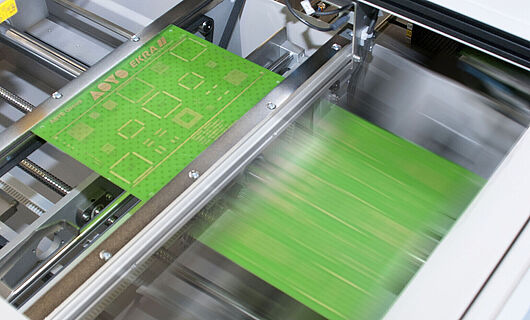

VEGO flip and turn modules enable fast and gentle automation of turning and flipping of PCBs in production lines. The high-end machines offer fast and gentle lifting movements as well as variable inlets and outlets.
Optionally, the machines can be equipped with magazine loading and unloading to ensure maximum flexibility and efficiency in the production line. The modules can be used variably for different manufacturing concepts.
AEM Series Turning Module
The VEGO turning module is used for changes of direction in production lines or for merging or splitting production lines. If the machine is equipped with a magazine lift, PCBs can be fed in and out.
- Corner transfer unit for PCBs
- Operating modes: pass-through, cross operation, sorting function, +/-90° rotation
- Can be expanded with a safety shutter at the transfer points as a reach-in protection from the outside
- Fast and smooth drives enable the shortest cycle times
- Sorting function: automatic sorting of assemblies by inspection results or production status
- Magazine lift integration: efficient inward and outward transfer of assemblies for flexible production control
- Seamless data exchange through standardized interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- Scalable at any time
WS Series Turning Module
The VEGO turning module is used to turn PCBs in production lines for backside assembly or labeling. The assemblies are held in the station by a stopper unit, turned 180° and passed on to the next machine.
- Operating modes: 180° turning, pass-through
- Can be expanded with a safety shutter at transfer points as an external hand protection
- Fast and gentle drives enable the shortest cycle times
- Automatic turning via external signal: PCB return, double turning detection
- Fast and smooth drives enable the shortest cycle times
- Additional lateral movement of assemblies
- Inlet and outlet conveyors
- Seamless data exchange through standardized interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- Scalable at any time
- WS 01
- WS 01Q: PCB is turned 90° across the transport direction
Maximum FlexibilityVariable inlets and outlets for flexible integration into production lines.
Expandable OptionsOptional magazine loading and unloading for even greater efficiency.
Smooth and Fast DrivesShortest cycle times thanks to fast drives.
Software Platform SynapticaOS
Plan. Control. Monitor. – One Platform. All Levels.
SynapticaOS offers intuitive and easy-to-implement software for industry.
The software platform optimizes processes through seamless data availability and
combines MES functionality with solutions for real-time monitoring of material logistics and production.
