Transfer Systems
for Trays and Carriers
MOTUS transfer systems are specifically designed for fully automated assembly lines, enabling the seamless integration of individual production steps. MOTUS transfer systems ensure the safe transportation of carriers and provide an ideal solution for complex production needs, even in tight spaces. Whether it's feeding, diverting, separating, buffering, or positioning, MOTUS transfer systems deliver effective solutions. With standardized modules, we can tailor and scale solutions to meet your specific requirements.
MOTUS Transfer Systems
- Suitable for trays and KLT boxes with a size of up to 800 x 600 mm
- Temperature range (continuous load) up to 80 degrees
- Load on one belt section up to 60 kg
- Transport speed up to 25 m/min

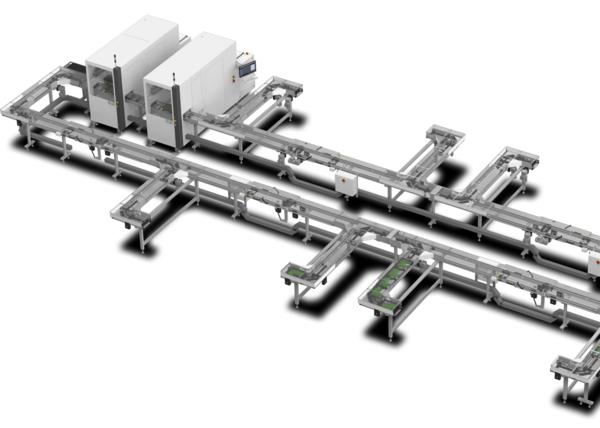

- Flexible layout planning thanks to modular design principle
- Consistent orientation of the workpiece carrier for minimal control effort
- Guaranteed traceability thanks to optional equipment with RFID tags or scanners
- Possibility of conversion or expansion thanks to modular design principle
ASYS develops modular, scalable machine solutions that can be flexibly adapted to product and process requirements, thereby conserving resources. The use of recyclable materials and a sustainable supply chain are an integral part of the development process. Intelligent energy management systems and predictive maintenance, for example, reduce the carbon footprint and ensure efficient, future-proof production.
- Transfer section
- Workpiece carrier

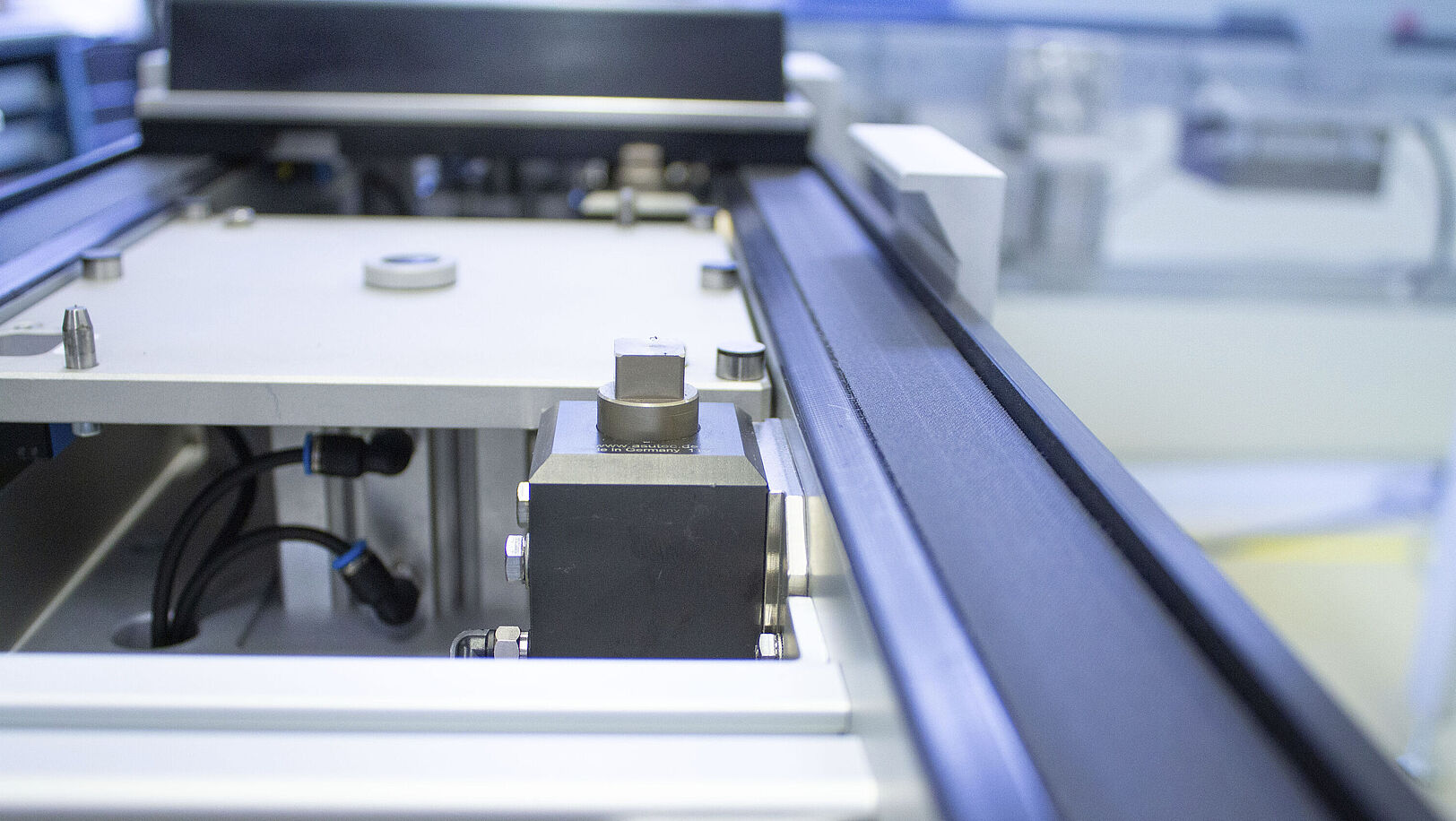

- Stopper and stopper damped
- Lift-out indexing unit (optionally also lockable)
- 90° and 180° curve
- Lift systems
- Pivoting transfer section
- Manual workstation
Maximum Flexibility and ScalabilityAny configuration of routes thanks to a wide range of tried-and-tested conveyor modules
High RobustnessDurable flat belts for weight classes up to 80 kg
and ambient temperatures of up to 80 degrees
Versatile Application OptionsCan be integrated in clean rooms (ISO class 8) and ESD-capable
Reliable Transfer Systems Thanks to Accumulation Operation
Our transfer and puck systems are the ideal solution for modern production facilities that require maximum reliability and flexibility. With proven accumulation operation while belts are running, our systems offer targeted control of the production flow, ensuring that every phase of your process runs reliably. This is made possible by stoppers or by the design of individual belt segments.

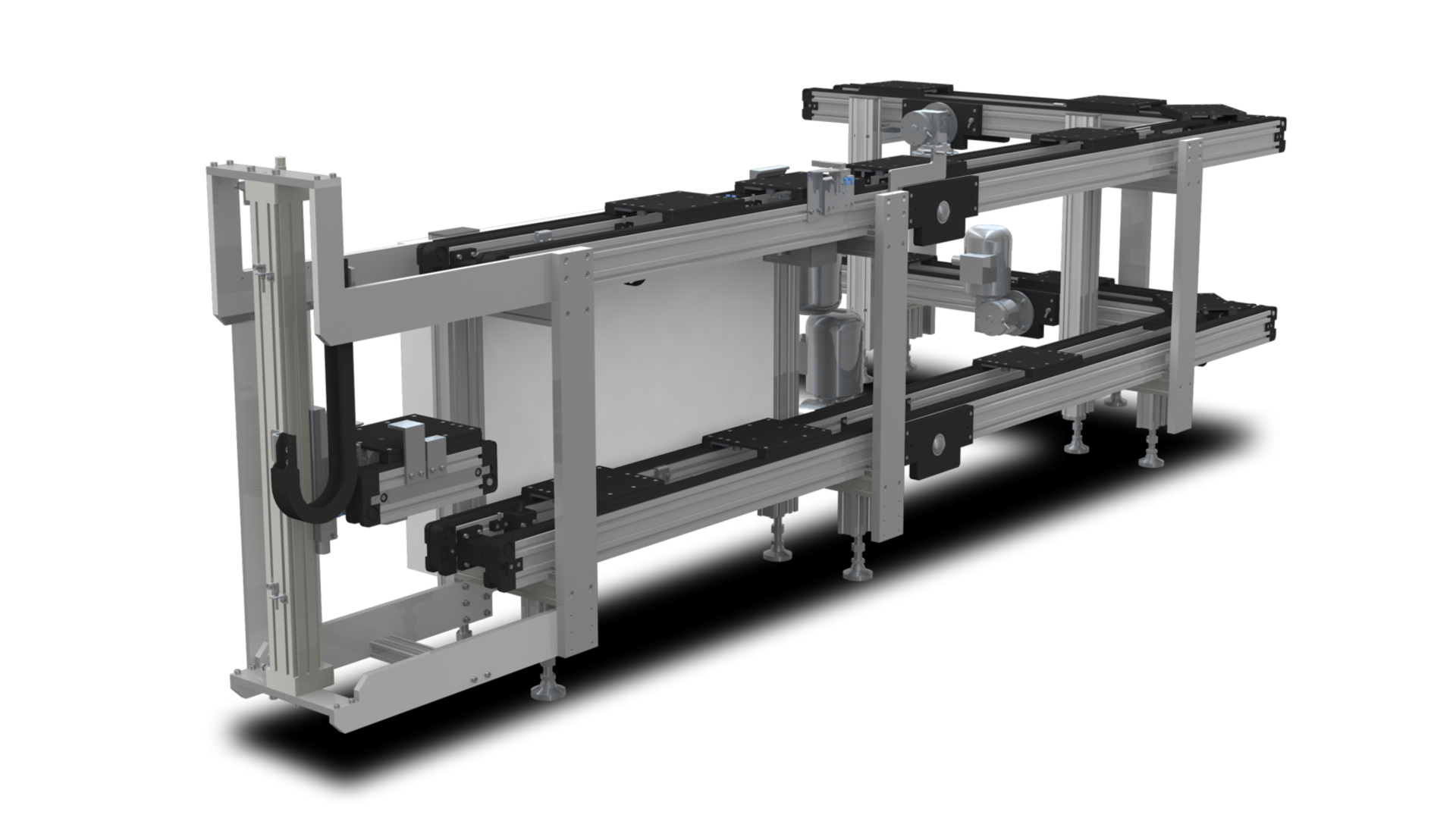

Space-saving Transfer Systems with Flexible Underfloor Technology
MOTUS transfer systems can be installed using elevators with underfloor technology, making them ideal for situations where workpiece carrier circulation is needed and space-saving solutions are a priority. The pre-assembled belt components allow for quick and flexible installation, changes, or extensions to meet the upcoming requirements of your production.
