Scanning Systems
for Traceability
INSIGNUM scanning systems ensure seamless traceability in the production line. With a wide range of variants and equipment options, they can be seamlessly integrated in front of process machines, manual workstations or inspection stations. The systems communicate directly with the respective processing machines or vertically with an MES system to enable maximum efficiency.

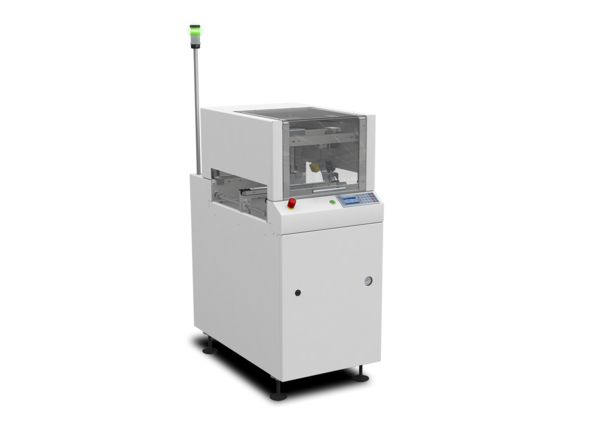

INSIGNUM 1000 Scan
- PCB format up to 508 x 508 mm
- Reading area up to 460 x 460 mm
- Module sizes up to 5 mil
- Reading from both sides (top and bottom)
- One position / side
- Automatic product changeover via Product Change
- Seamless data exchange through standardised interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
ASYS develops modular, scalable machine solutions that can be flexibly adapted to product and process requirements, thereby conserving resources. The use of recyclable materials and a sustainable supply chain are an integral part of the development process. Intelligent energy management systems and predictive maintenance, for example, reduce the carbon footprint and ensure efficient, future-proof production.
- INSIGNUM 1000 Scan 530mm
- INSIGNUM 1000 Scan 600mm
- INSIGNUM 1000 Scan 790mm

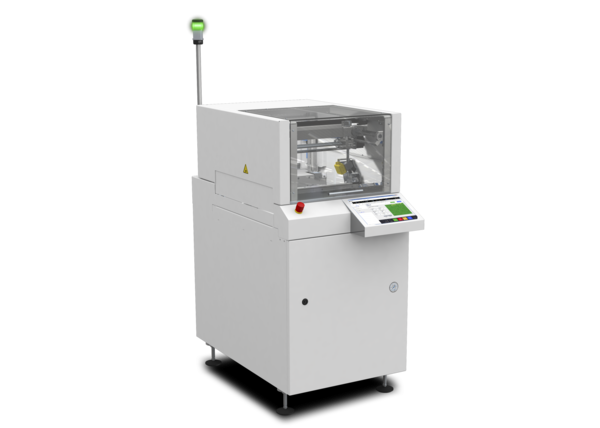

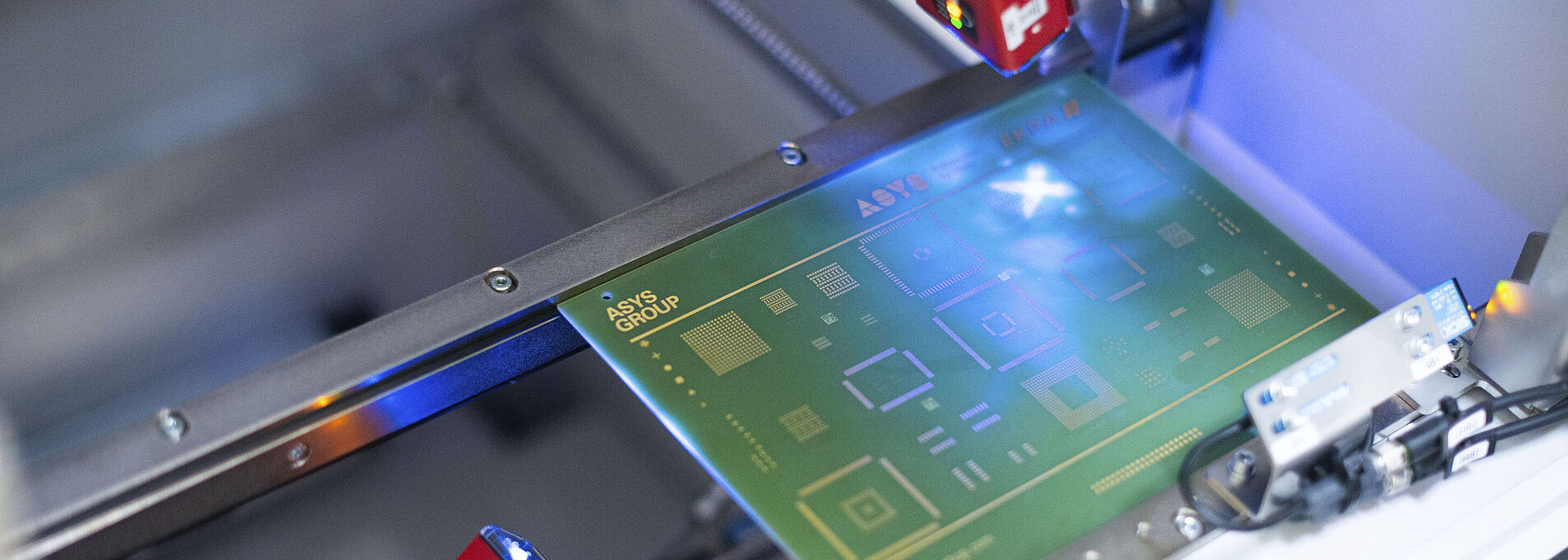

INSIGNUM 3000 Scan
- PCB format up to 508 x 508 mm
- Reading area up to 460 x 460 mm
- Module sizes up to 5mil
- Double-sided reading (top and bottom)
- N positions / side
- Automatic product changeover via MES
- Seamless data exchange through standardised interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- Product Pool: Centralised management of product data allows programmes to be created and managed more efficiently
- Offline programming for creating and editing machine programmes at a separate workstation
ASYS develops modular, scalable machine solutions that can be flexibly adapted to product and process requirements, thereby conserving resources. The use of recyclable materials and a sustainable supply chain are an integral part of the development process. Intelligent energy management systems and predictive maintenance, for example, reduce the carbon footprint and ensure efficient, future-proof production.
- INSIGNUM 3000 Scan 530mm
- INSIGNUM 3000 Scan 600mm
- INSIGNUM 3000 Scan 790mm
Individual ConfigurationVariable scanning areas available in three flexible models.
Top and Bottom-Scanfor maximum flexibility.
Standardized Interfacesfor seamless data acquisition.
Traceability Through End-To-End Networking
With INSIGNUM systems, every product is unique - thanks to precise labeling and intelligent data networking. Our systems are fully networked horizontally along the production line and vertically via MES systems.
- Interfaces: Thanks to established standard interfaces such as HERMES or to MES systems, integration is achieved seamlessly. If required, we can also develop customized interfaces.
- Offline Programming: New products can be added directly during automatic operation - without downtime.
- Product Pool: All created product data is stored centrally and is available to all INSIGNUM systems in your production. This means: create once - use everywhere.
Software Platform SynapticaOS
Plan. Control. Monitor. – One Platform. All Levels.
SynapticaOS offers intuitive and easy-to-implement software for industry.
The software platform optimizes processes through seamless data availability and
combines MES functionality with solutions for real-time monitoring of material logistics and production.
