Laser Marking Machines
Precision in the Smallest Space
From standard solutions to high-end applications, INSIGNUM laser marking machines meet all the requirements of laser marking of printed circuit boards. Whether CO₂ or fiber laser, the right laser can be integrated for every application. Thanks to its versatility, materials such as solder resists, metals, plastics and ceramics can be precisely processed.

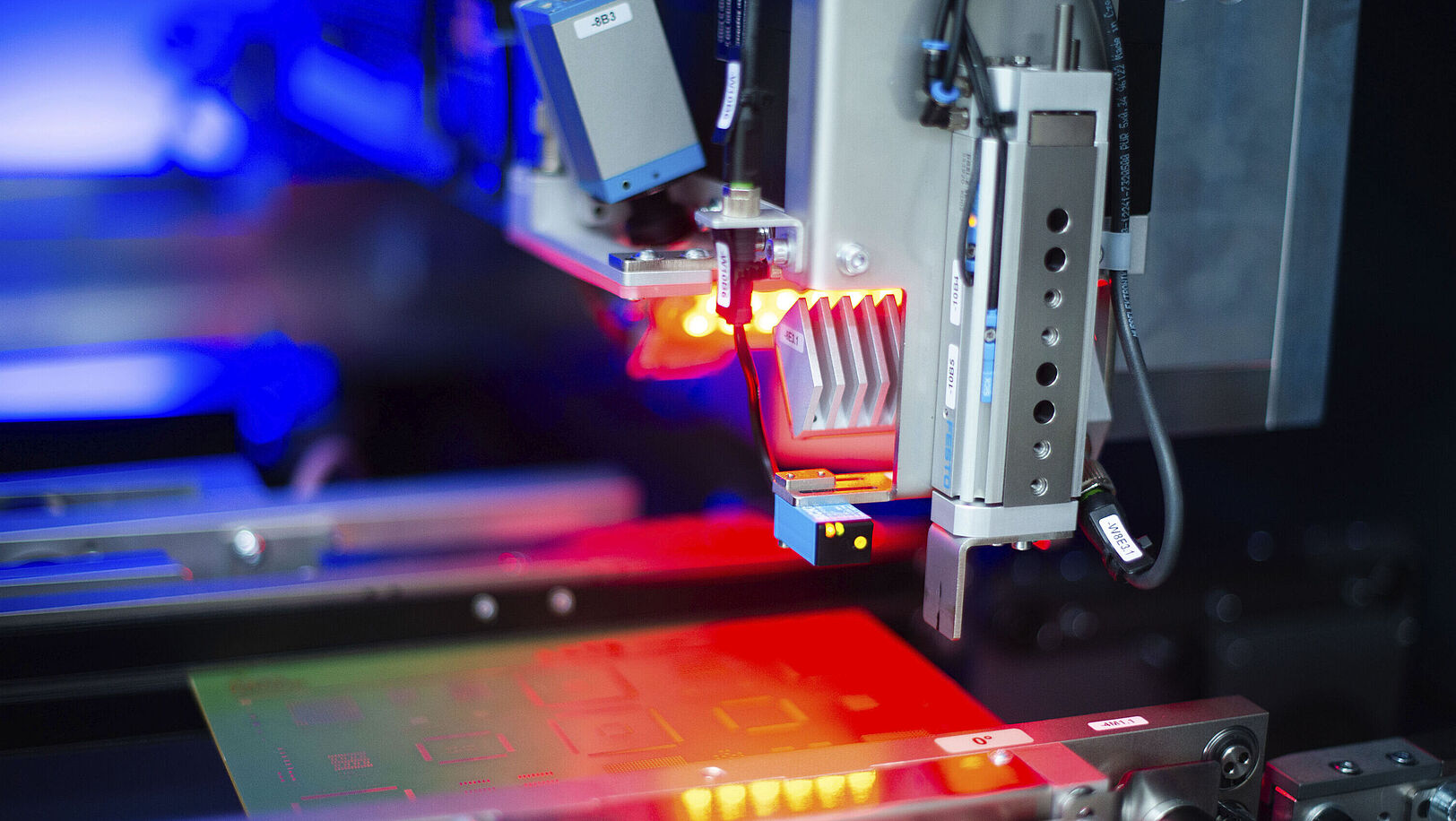

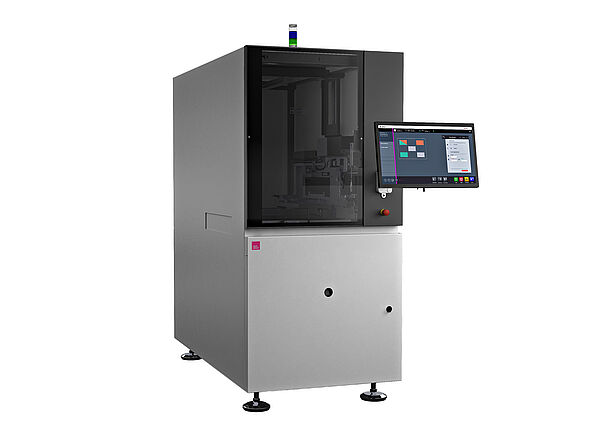

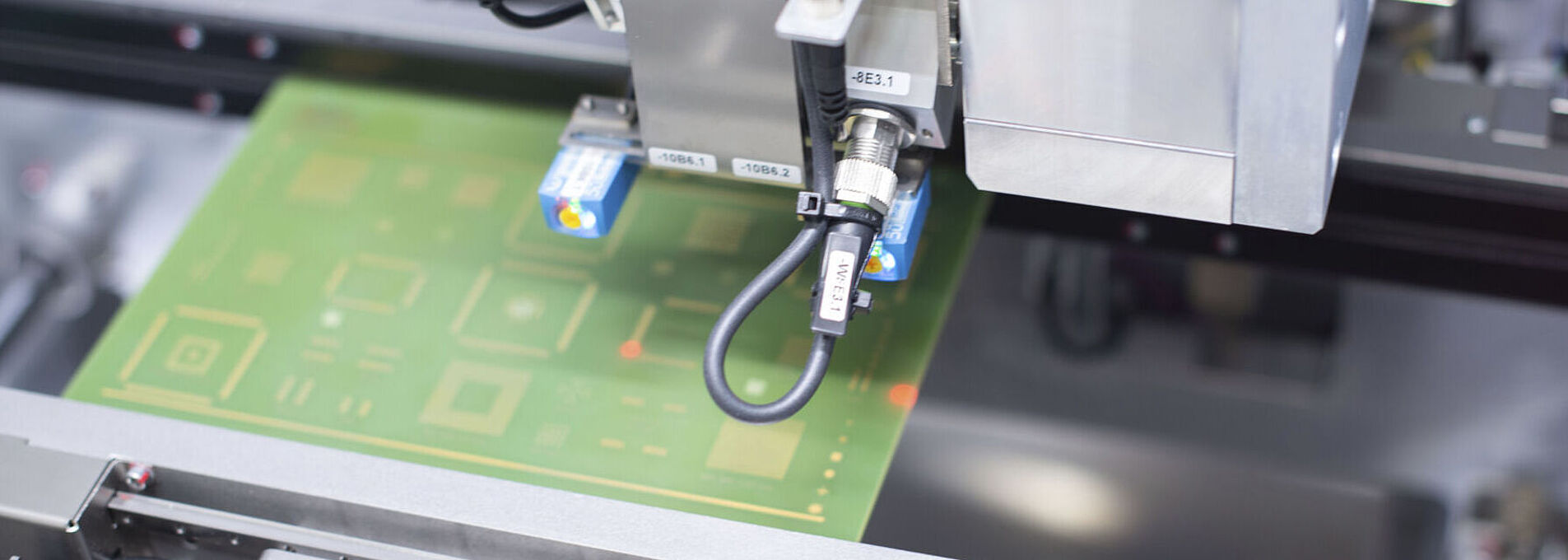

INSIGNUM 4000
- PCB formats 508 x 508mm
- Marking area 508 × 508 mm
- Positioning accuracy ± 100 µm @5 Sigma
- Cycle time 0.7 seconds / marking
- Module sizes up to 5 mil
- CO₂ / fiber laser
- Double-sided marking using integrated turning station
- Simplex user interface: clear user guidance and user-friendliness
- Artificial intelligence for determining laser parameters and lighting parameters
- OPTIMAP to reduce the cycle time by up to 50%
- Automatic fiducial and position detection
- Travelling Salesman (minimises the travel time between marking points)
- Seamless data exchange through standardised interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- Product Pool: Centralised management of product data allows programmes to be created and managed more efficiently
- Offline programming for creating and editing machine programmes at a separate workstation
- Sleep-mode extraction for longer line stops
ASYS develops modular, scalable machine solutions that can be flexibly adapted to product and process requirements, thereby conserving resources. The use of recyclable materials and a sustainable supply chain are an integral part of the development process. Intelligent energy management systems and predictive maintenance, for example, reduce the carbon footprint and ensure efficient, future-proof production.

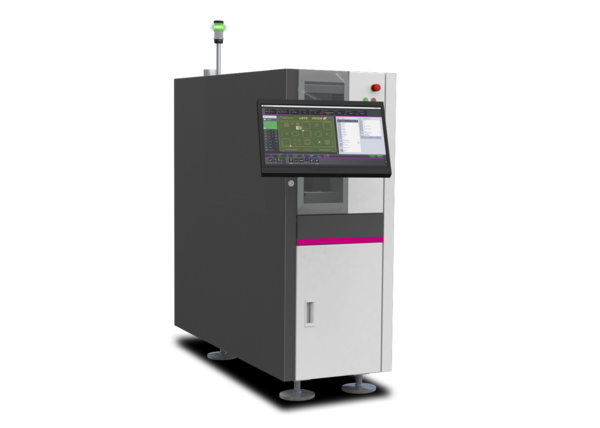

INSIGNUM 1000
- Marking area up to 240 mm
- CO₂ / fiber laser
- PCB formats 460 x 460 mm
- Seamless data exchange through standardised interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- Product Pool: Centralised management of product data allows programmes to be created and managed more efficiently
- Offline programming for creating and editing machine programmes at a separate workstation
- Sleep-mode extraction for longer line stops
ASYS develops modular, scalable machine solutions that can be flexibly adapted to product and process requirements, thereby conserving resources. The use of recyclable materials and a sustainable supply chain are an integral part of the development process. Intelligent energy management systems and predictive maintenance, for example, reduce the carbon footprint and ensure efficient, future-proof production.
- INSIGNUM 1000 drawer
- INSIGNUM 1000 conveyor belt

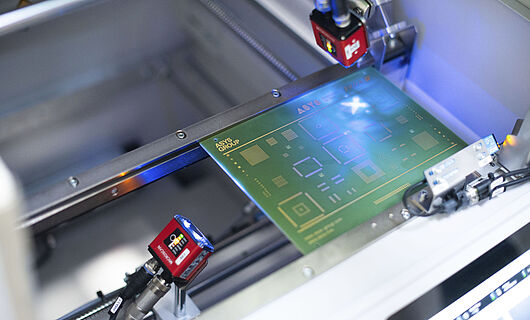

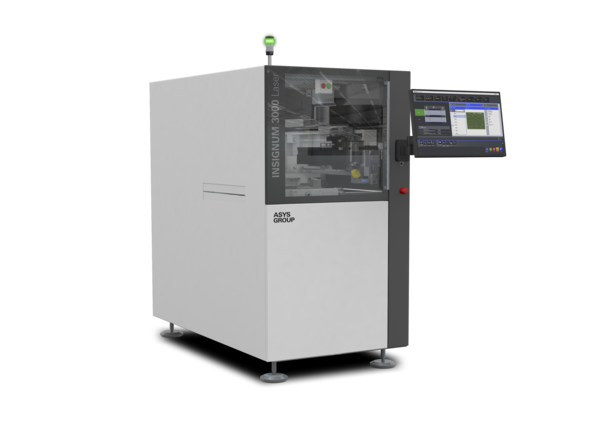

INSIGNUM 3000
- PCB formats 460 x 460 mm
- Marking area 400 x 400 mm
- Positioning accuracy ± 150 µm @5 Sigma
- Cycle time 1 second / marking
- Module sizes down to 5 mil
- CO₂
- Double-sided marking
- AI-supported determination of optimum laser and lighting parameters
- Automatic fiducial and position detection
- Automatic exposure adjustment
- Travelling Salesman (minimisation of travel time between marking points)
- Seamless data exchange through standardised interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- Product Pool: Centralised management of product data allows programmes to be created and managed more efficiently
- Offline programming for creating and editing machine programmes at a separate workstation
- Sleep-mode extraction for longer line stops
ASYS develops modular, scalable machine solutions that can be flexibly adapted to product and process requirements, thereby conserving resources. The use of recyclable materials and a sustainable supply chain are an integral part of the development process. Intelligent energy management systems and predictive maintenance, for example, reduce the carbon footprint and ensure efficient, future-proof production.

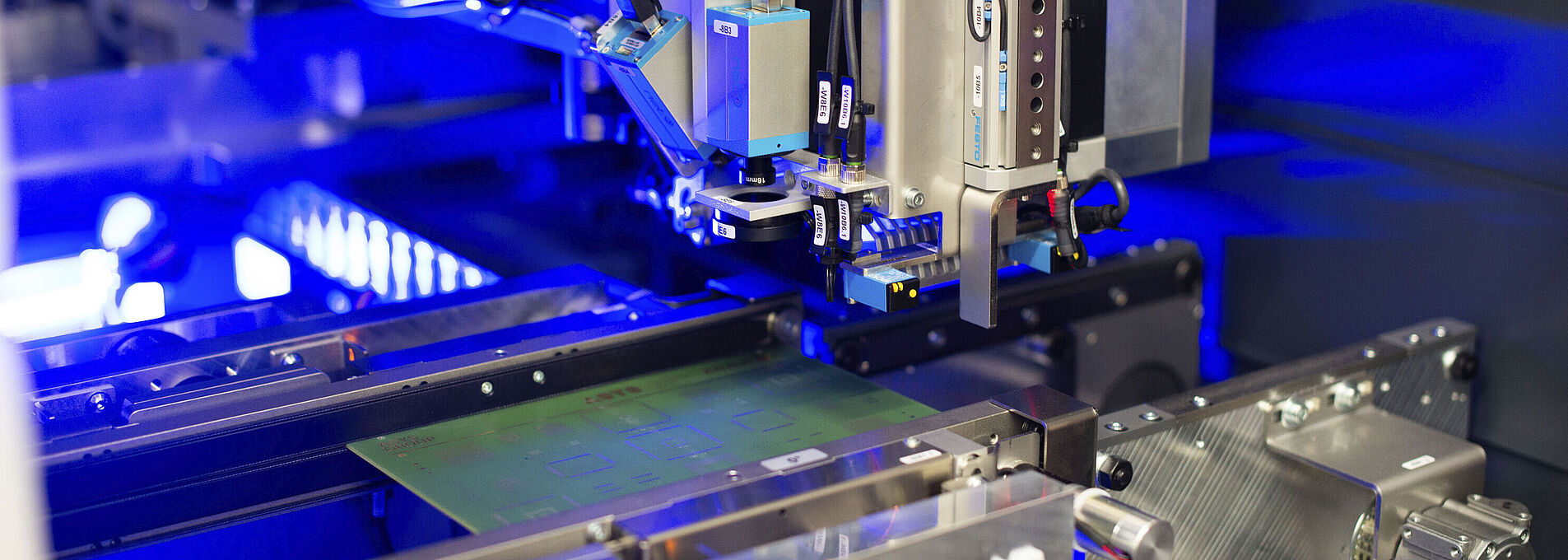

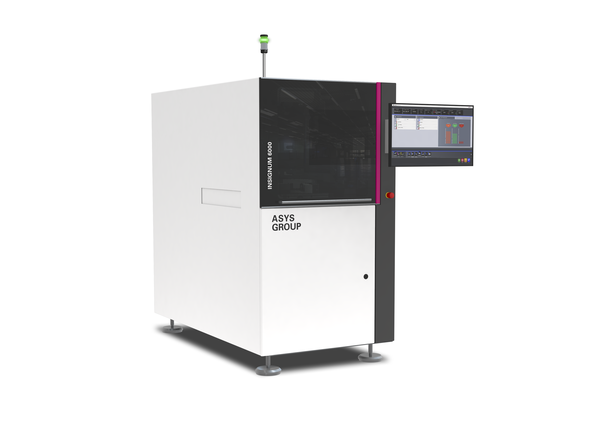

INSIGNUM 6000
- PCB formats up to 1000 x 610 mm
- Marking area up to 1000 × 610 mm
- Positioning accuracy ± 100 µm @5 Sigma
- Cycle time 0.7 seconds / marking
- Module sizes up to 3 mil
- CO₂ / fiber laser
- Double-sided marking up to 610 mm
- Artificial intelligence for determining laser parameters and lighting parameters
- OPTIMAP to reduce the cycle time by up to 50%
- Automatic fiducial and position detection
- Travelling Salesman (minimises the travel time between marking points)
- Seamless data exchange through standardised interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- Product Pool: Centralised management of product data allows programmes to be created and managed more efficiently
- Offline programming for creating and editing machine programmes at a separate workstation
- Sleep-mode extraction for longer line stops
ASYS develops modular, scalable machine solutions that can be flexibly adapted to product and process requirements, thereby conserving resources. The use of recyclable materials and a sustainable supply chain are an integral part of the development process. Intelligent energy management systems and predictive maintenance, for example, reduce the carbon footprint and ensure efficient, future-proof production.
- INSIGNUM 6000 3mil
- INSIGNUM 6000 XL
- INSIGNUM 6000 XXL
Marking on the Smallest SurfaceHigh precision from 100 µm to 3 mil
Short Cycle TimesFeatures reduce cycle times to 4.8 seconds per marking process.
Standardized MES ConnectionsPredefined interfaces transfer job data, serial numbers and machine status in real time.
CO₂ Laser
The CO₂ laser is primarily used to mark solder resists. During the color change, there is only minimal material removal and no adverse effects due to environmental influences. However, the contrast of the marking depends on the solder resist.
- Optimal for solder resists
- Particularly gentle on materials
- Cost-efficient solution

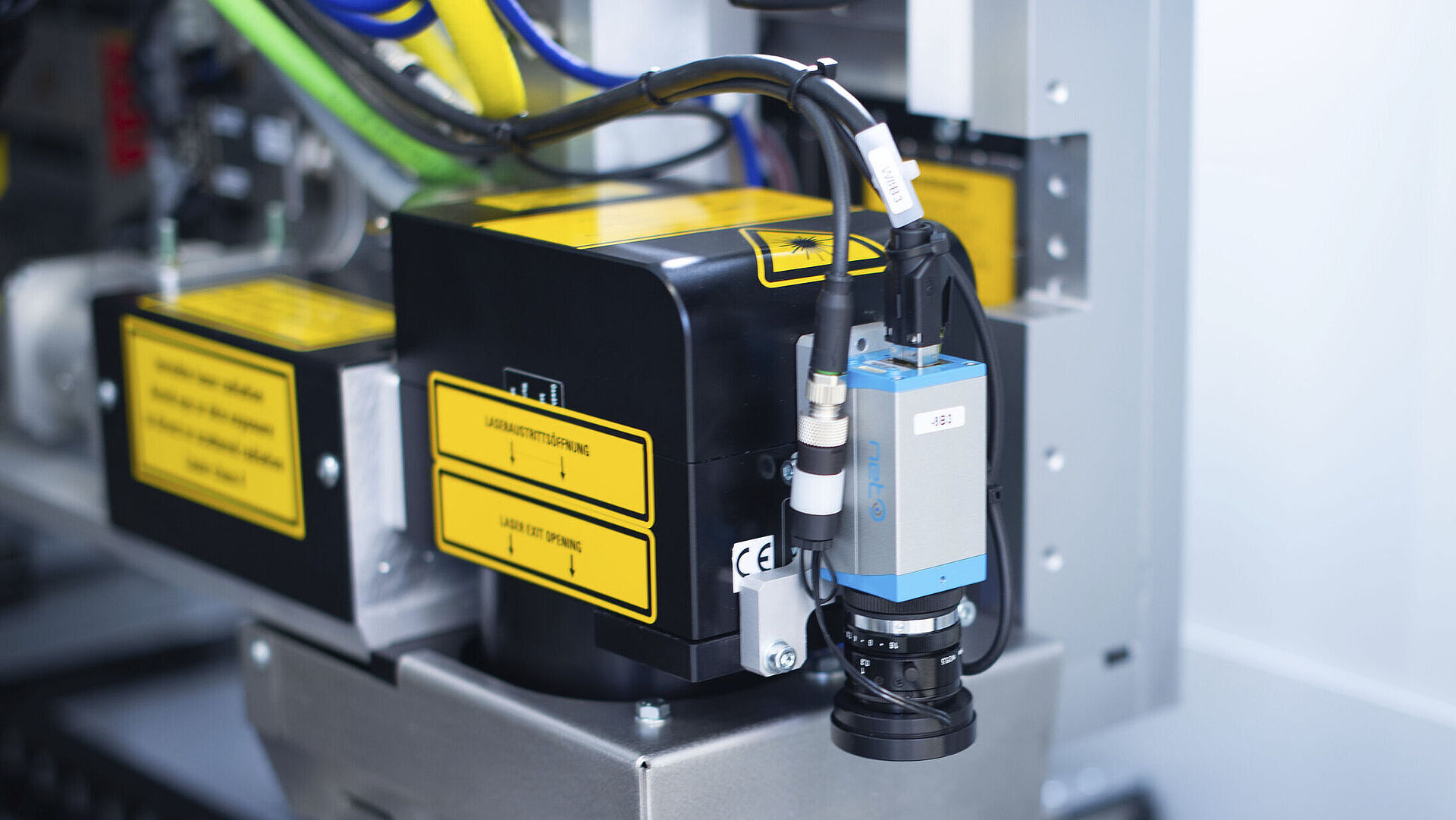

Fiber Laser
The fiber laser is ideal for marking printed circuit boards by removing solder resist. Marking requires a copper layer under the resist.
The advantage: the contrast of the marking is independent of the solder resist; only minor or no parameter changes are required for a wide range of resists. Furthermore, a wide variety of metals, plastics and ceramics can be marked.
- Optimal for metal, plastic, ceramics, etc.
- High contrast
- Reduced setup times
Traceability Through End-To-End Networking
With INSIGNUM systems, every product is unique - thanks to precise labeling and intelligent data networking. Our systems are fully networked horizontally along the production line and vertically via MES systems.
- Interfaces: Thanks to established standard interfaces such as HERMES or to MES systems, integration is achieved seamlessly. If required, we can also develop customized interfaces.
- Offline Programming: New products can be added directly during automatic operation - without downtime.
- Product Pool: All created product data is stored centrally and is available to all INSIGNUM systems in your production. This means: create once - use everywhere.
Software Platform SynapticaOS
Plan. Control. Monitor. – One Platform. All Levels.
SynapticaOS offers intuitive and easy-to-implement software for industry.
The software platform optimizes processes through seamless data availability and
combines MES functionality with solutions for real-time monitoring of material logistics and production.
