PCB Pass-through Modules
and Portal Systems
VEGO Pass-through Modules for safe passage within closed production lines reduce walking distances and enable quick and safe movement between production lines. The folding and telescopic passage modules, as well as gantry systems, are used to traverse production lines for logistical purposes.
This increases efficiency and significantly reduces the movements between production lines for the operator.
Pass-through Modules
- Telescopic belt as a line passage
- Operating modes:
- NO (normally open): passage open, only closed when PCB are transferred
- NC (normally closed): passage closed, only opens on request (option)
- NC/NO: passage is open, automatically adjusts to the line cycle
- Stepper motor with path and force monitoring, adjustable speed
- Monitoring of the passage with reflection light barriers
- Extension of lifting belt for the shortest cycle times
- Wireless SMEMA interface
- Seamless data exchange through standardized interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
ASYS develops modular, scalable machine solutions that can be flexibly adapted to product and process requirements, thereby conserving resources. The use of recyclable materials and a sustainable supply chain are an integral part of the development process. Intelligent energy management systems and predictive maintenance, for example, reduce the carbon footprint and ensure efficient, future-proof production.
- TDM 06: Telescopic through-module
- KDM 01: Hinged through-module

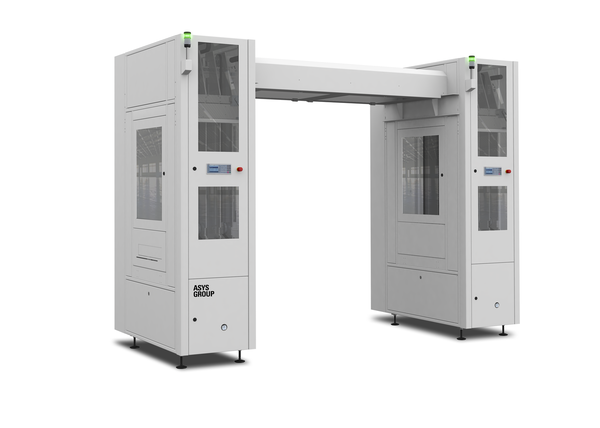

Portal Buffer
- Portal, through-passage width freely definable

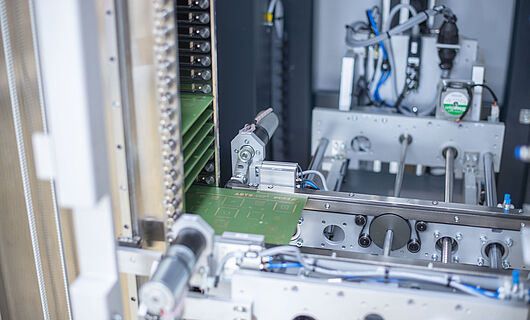

- Buffering of PCBs in belt
- Capacity of up to 70 places
- High degree of freedom from components thanks to variably adjustable slot distance
- Cycle time-neutral line throughput
- High component clearance thanks to variably adjustable slot distance
- Conveyor line flexibly expandable
- Flexible layout design through integrated corner transfer unit
- Turning station can be integrated in the overhead conveyor line
- Seamless data exchange through standardized interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA
- Developed for SynapticaOS
- Minimization of walking distances for operators
Most Durable & FlexibleSustainable machines, flexibly adaptable to your needs.
Maximum SecurityAnti-pinch protection & light barrier for safe passage.
Shorter DistancesOptimizes logistics processes & increases efficiency thanks to shorter distances.
Software Platform SynapticaOS
Plan. Control. Monitor. – One Platform. All Levels.
SynapticaOS offers intuitive and easy-to-implement software for industry.
The software platform optimizes processes through seamless data availability and
combines MES functionality with solutions for real-time monitoring of material logistics and production.
