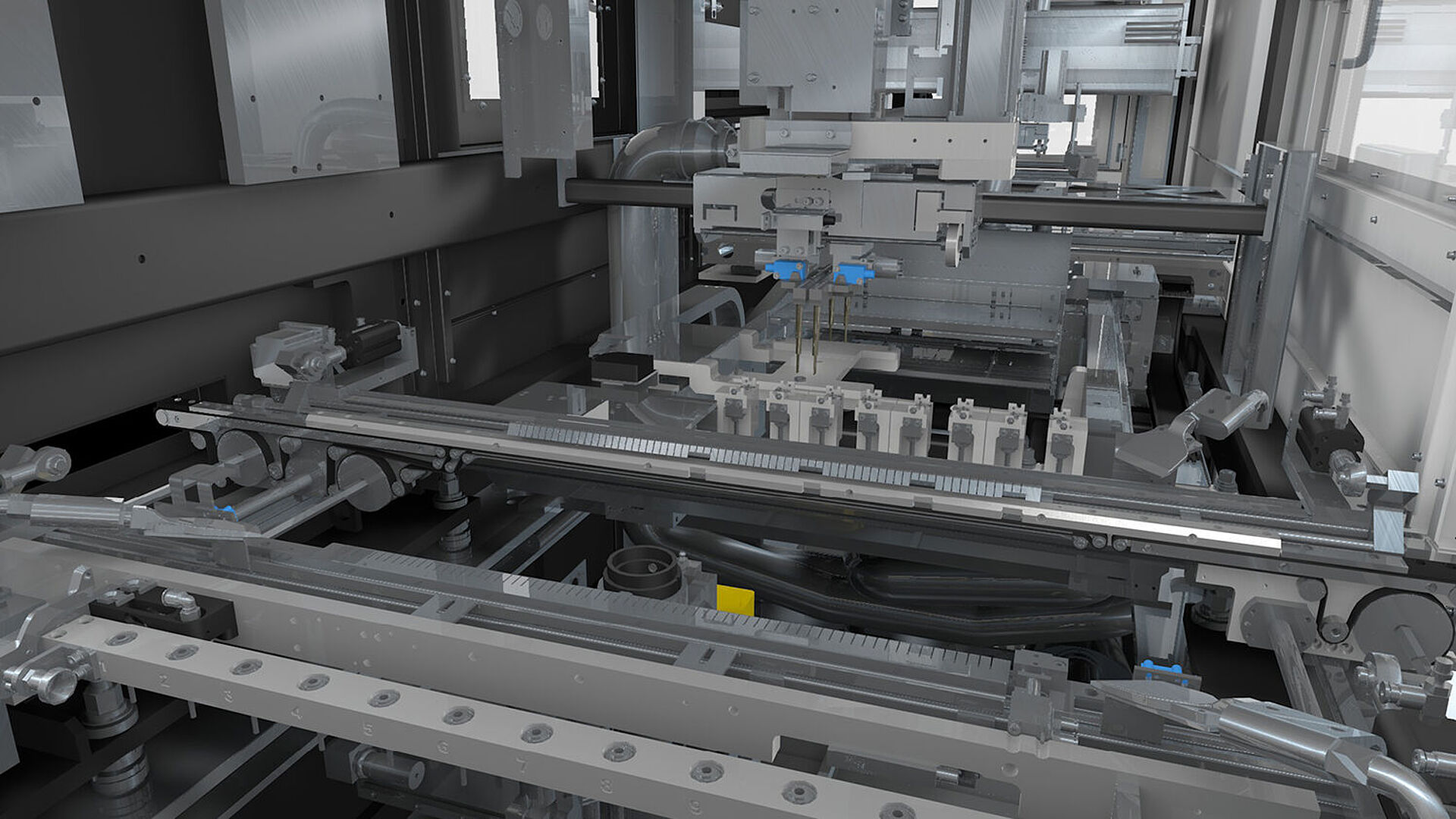

DIVISIO 6000 is a highly dynamic depaneling system for maximum output. The module can combine depaneling with final assembly or final testing.
After the routing the separated PCBs will be placed in the middle of the machine on a turntable or a shuttle system. Various processes can be integrated here, such as ICT testing, flashing, laser marking, AOI inspection, cleaning, mounting and many more.
By using parallel processes and multigripper technology, DIVISIO 6000 depaneling system can achieve very short cycle times.
The Benefits
for Your Production
Automatic program
change
Small footprint in comparison to a final testing line
Shortest cycle times due to parallelization of processes
Different Technologies in One System
DIVISIO 6000 depaneling system combines several technologies, enables depaneling and final testing, processes 100% tested PCBs and achieves a cycle time of 2.5 seconds.
- Segment belt
- Product barrier
- Transport
- Testing
- Flashing
- Mounting
- Inspection
- Marking
- Workpiece carrier
- Tray handling und palletizing
- Shuttle transport
- Flat belt conveyor
Turntable Features of DIVISIO 6000
Turntable with 4, 8 or 12 positions to integrate additional
processes like:
- Testing
- Cleaning
- Marking
Shuttle Features of DIVISIO 6000
Shuttle transport with 1, 2 or 4 integrated shuttles for:
- Cleaning
- AOI inspection
- Flipping
Solutions That Meet Your Needs
- Cleaning
Highest standards in the reduction of dust particles on the PCB to improve the quality of the final product - Laser Marking
Marking PCBs after depaneling and testing - Optical Analysis
Integration of measuring equipment to check brightness and color of LED - ICT/Flash
Integration of equipment for in-circuit tesing and flashing the PCBs - AOI
Cut inspection to check the accuracy of depaneling
